Is Your Spiral Freezer Operating at Peak Performance? Know When to Replace Critical Spare Parts

In the fast-paced frozen food industry, operational reliability is paramount. A single unexpected equipment failure can disrupt production schedules, cause product spoilage, and lead to significant financial losses.  Factory managers, maintenance teams and operations leaders must ensure their spiral freezers function at optimal efficiency.

One of the key factors in achieving this? Staying ahead of spare part replacements.

How Do You Know When Your Spiral Freezer Needs Spare Part Replacement?

Downtime in a frozen food processing facility can mean lost revenue, significant operational disruptions and unhappy customers that can lead to negative impacts on future business. While preventive maintenance is essential, many factory and maintenance managers only think about spare parts when something goes wrong.

Unfortunately, by the time you notice a failure, the damage may already be extensive, leading to costly repairs, safety risks, and production delays.

The Hidden Risks of Delaying Spare Part Replacement

Spiral freezers and industrial freezing machinery are built for efficiency and durability, but no part lasts forever. Each component has a recommended replacement schedule, and ignoring it can lead to serious consequences.

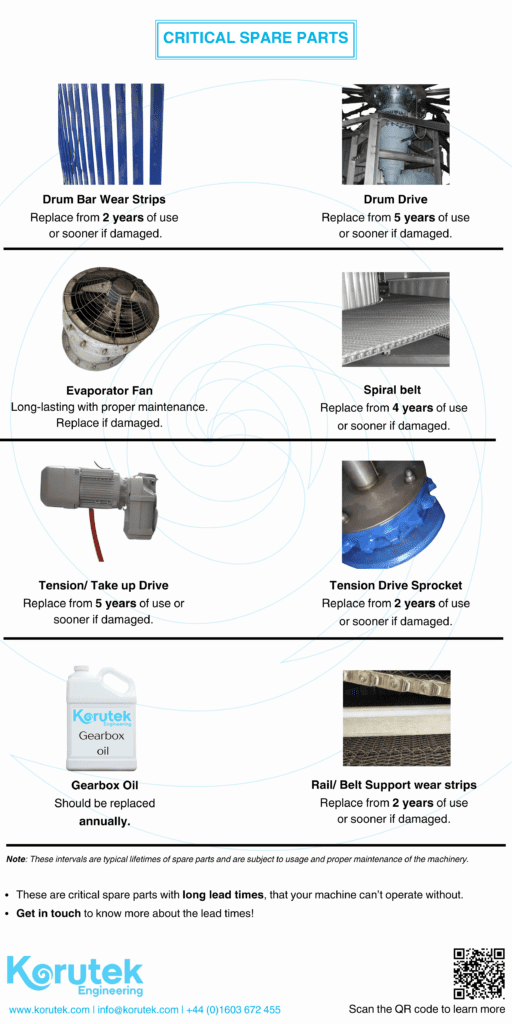

Let’s take a closer look at the critical spare parts that need regular replacement and the potential risks of neglecting them.

1. Drum Bar Wear Strips – The ‘Xmas Tree’ Effect

Drum bar wear strips play a crucial role in maintaining belt tension and stability. Over time, these strips wear down, and when not replaced, the belt can start lifting on the top tier, a phenomenon known in the industry as the “Christmas tree effect.”

This misalignment causes irregular product movement, leading to product losses, increased strain on the belt and potential breakdowns or long-term spiral structural damage. If left unchecked, it can lead to severe tension issues, belt misalignment, and even belt lapsing, causing unplanned freezer shutdowns.

When to replace: Every 2 years or sooner if signs of wear appear.

2. Drum Drive – The Heart of the Freezer

The drum drive is the powerhouse that keeps your spiral freezer’s belt moving. Over time, wear and tear can lead to inefficiencies in operation, often caused by gearbox oil loss and water ingress. These issues can result in belt slippage, uneven freezing, and increased mechanical stress on other components.

If the drum drive begins to fail, the belt may not move smoothly, leading to product inconsistencies, excessive strain on the motor, and even unexpected system shutdowns.

In the worst-case scenario, a failing drum drive can cause a complete freezer failure, bringing production to a standstill and requiring costly emergency repairs. Additionally, the lead time for this component is quite long, meaning that without a spare on hand, production downtime could be significantly prolonged.

When to replace: Every 5 years or sooner if performance issues arise.

3. Evaporator Fans – A Small Failure with Big Consequences

The evaporator fan is responsible for maintaining consistent airflow and temperature within your freezer. However, if the blades become loose or break, they can cause serious damage to surrounding components such as the coil, housing, and belt. Beyond mechanical damage, broken fan blades can also lead to product contamination.

To prevent such costly disruptions, it is essential to routinely inspect evaporator fans, keep spare parts on hand, and replace components proactively before failures occur.

 When to replace: Inspect regularly and replace immediately if any damage is detected.

4. Spiral Belt – The Backbone of Your Freezer

The spiral belt is one of the most critical components of your freezing system. Over time, it undergoes wear due to continuous load, temperature fluctuations, and mechanical stress.

A worn-out belt can lead to inconsistent product movement, increased friction, and even complete belt failure. If the belt snaps or misaligns, it can halt production entirely, resulting in massive losses.
Additionally, a failed belt can choke the system, potentially twisting the spiral structure and causing catastrophic damage to the entire unit. Regular inspection and timely replacement are essential to prevent costly downtime and structural failures.

When to replace: Every 4 years or sooner if damage is visible.

5. Tension/Take-Up Drive – The Silent Culprit of Operational Downtime

The tension drive ensures the correct alignment and movement of the spiral belt. If it fails, the entire belt system can slip, causing product jams, uneven freezing, belt surging and product misalignment.

A worn-out tension drive often goes unnoticed until it’s too late, leading to costly emergency repairs.

When to replace: Every 5 years or sooner if performance declines.

6. Tension Drive Sprocket – A Small Part with a Big Role

This seemingly minor component is responsible for smooth belt movement. However, worn sprockets can create jerky motions, leading to belt wear, increased stress on the system, and possible breakdowns.

If ignored, a failing sprocket can cause belt failure, stopping production altogether.

When to replace: Every 2 years or sooner if excessive wear is detected.

7. Gearbox Oil – The Lifeline of Your Machinery

Oil degradation is a silent destroyer of machinery. Over time, contaminants build up, reducing lubrication and increasing friction.

If not replaced annually, worn-out oil can lead to overheating, gearbox damage, and even complete drive failure. A failed gearbox means lengthy, unexpected downtime and expensive repairs.

When to replace: Annually without fail.

8. Rail/Belt Support Wear Strips – The Overlooked Component

These strips support and guide the belt as it moves through the freezing process. If they wear out, the belt can shift unpredictably, causing inefficiencies, excessive wear, and even mechanical damage.

Ignoring worn wear strips can reduce the lifespan of the spiral belt, leading to sudden breakdowns, requiring costly emergency repairs and halting production.

When to replace: Every 2 years or sooner if visible wear is present.

Avoid Costly Downtime – Plan Ahead

Ignoring spare part replacement schedules is a gamble that can lead to significant operational disruptions and unplanned expenses.
By keeping a stock and replacing parts proactively, you can prevent minor issues from escalating into major failures, ensuring consistent production, hygiene, product quality, and cost savings.

Key Takeaways:

• Preventive maintenance saves money. Replacing parts on schedule reduces the risk of emergency breakdowns.

• Downtime is expensive. A single failure can have a knock-on effect and can lead to thousands in lost production time and repairs

• Critical spare parts should be stocked in advance. Instead of waiting for a failure to occur, keeping essential spare parts on hand ensures quick replacements and minimises downtime

• Spare parts have long lead times. Don’t wait until failure—Plan ahead and secure replacements before they are needed to avoid costly delays.
